SCB12R Serues Closed-loop (compensated) current sensor develops based on Hall effect measurement principle. ? The isolation voltage between primary and secondary is greater than 3000VAC. ? Can measure DC, AC, pulse, and various irregular waveforms under isolated conditions. ? Very low temperature drift, zero drift, fast response time, good linearity, accuracy can reach 0.1%. ? Dynamic performance (di/dt and response time) is optimal when the busbar is fully filled with primary perforations.

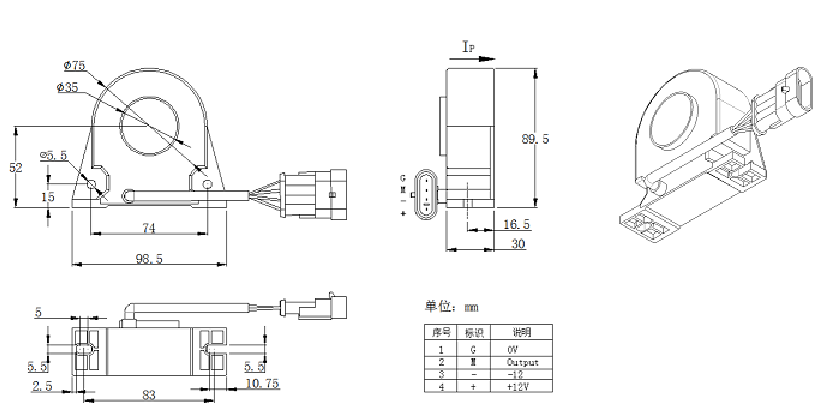

BackDimension & Wiring:
Notes:
1. Size error: ±1mm;
2. Primary aperture: φ35mm;
3. Fastening hole: φ5.5mm*2;
4. SCB12R Output Terminal 282404-1/AMP ;
5. The IP indication direction is the positive direction of the current;
6. Incorrect wiring may cause damage to the sensor.
